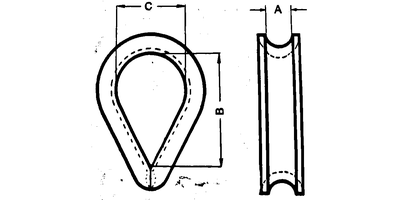

| Size (mm) | Weight Kgs/100 | Dimensions (mm) | ||
| A | B | C | ||
| 2.5 | 0.50 | 3 | 19 | 12 |
| 3.5 | 0.80 | 4 | 21 | 13 |
| 4.0 | 1.00 | 5 | 23 | 14 |
| 5.0 | 1.60 | 6 | 25 | 16 |
| 6.0 | 1.90 | 7 | 28 | 18 |
| 7.0 | 3.00 | 8 | 32 | 20 |
| 9.0 | 4.70 | 10 | 38 | 24 |
| 11.0 | 6.80 | 12 | 45 | 28 |
| 13.0 | 8.00 | 13 | 48 | 30 |
| 13.0 | 10.00 | 14 | 51 | 32 |
| 15.0 | 14.50 | 16 | 58 | 36 |
| 16.0 | 18.00 | 17 | 61 | 38 |
| 17.0 | 20.00 | 18 | 64 | 40 |
| 18.0 | 29.00 | 20 | 72 | 45 |
| 20.0 | 32.00 | 22 | 80 | 50 |
| 22.0 | 47.00 | 24 | 90 | 56 |
| 24.0 | 59.00 | 26 | 99 | 62 |
| 26.0 | 80.00 | 28 | 112 | 70 |
| 28.0 | 110.00 | 30 | 120 | 75 |
| 30.0 | 123.00 | 32 | 128 | 80 |
| 32.0 | 156.00 | 34 | 152 | 92 |
| 34.0 | 176.00 | 36 | 160 | 100 |
| 36.0 | 192.00 | 38 | 176 | 110 |
| 38.0 | 292.00 | 40 | 184 | 115 |
| 40.0 | 320.00 | 42 | 192 | 120 |
